Description

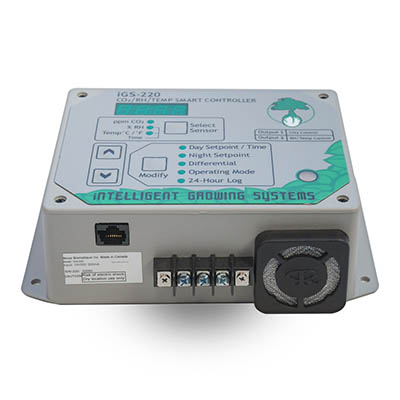

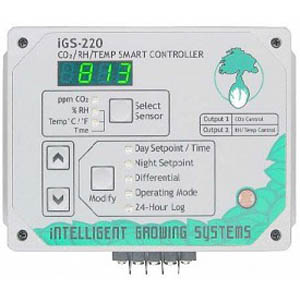

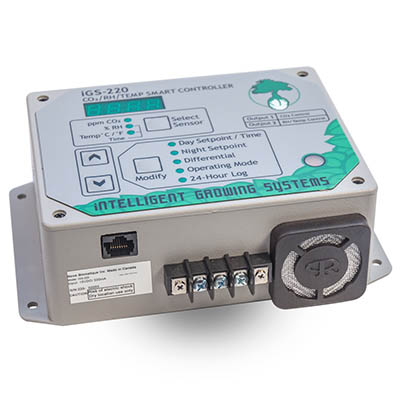

CO2/RH/Temperature Smart Controller iGS-220

The iGS-220 Smart Controller is the simplest solution to integrate climate management to CO2 control.

The iGS-220 Smart Controller is a sophisticated controller for experienced growers! The iGS-220 can increase yields and quality of harvest and energy savings from the moment you start using it. No more need to coordinate many controllers together, the iGS-220 prioritizes actions according to a logical sequence, avoiding contradictory actions. Smart self-adjustment of operation differential keep conditions closest to set points. The iGS-220 is a smart device that provides you with information on the performance of your equipment allowing you to optimize your configuration.

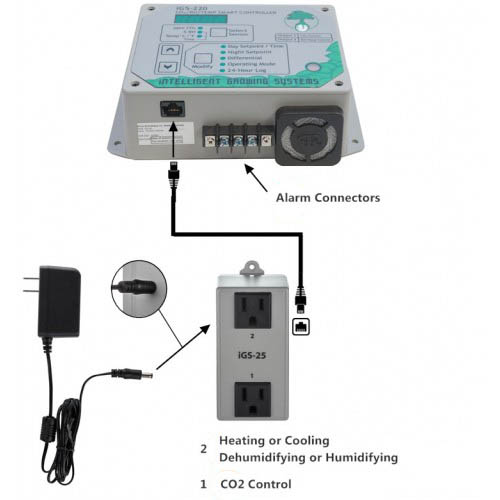

The controller will automatically adjust its operating differential to keep conditions closest to temperature, relative humidity and CO2 concentration set points. The controller database allows you to know the real conditions of your garden over the last 24 hours. Connected to a compatible alarm system (0.6 A @ 120 Vac or 2A @ 30 Vdc), the controller will activate alarms to notify a temperature or a humidity control problem.

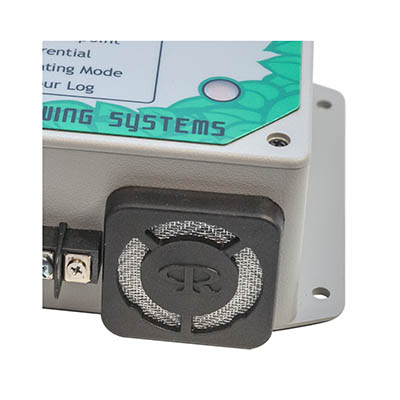

The 1st auxiliary output is used for CO2 enrichment or CO2 ventilation control. Multiple operation modes are available to ensure effective control: the controller can shut off equipment while CO2 enrichment is ON, or the other way around. The air sampling is optimized by means of an integrated fan and the internal CO2 sensor reads values from 0 to 5000 ppm.

The 2nd auxiliary output is used for temperature or humidity control equipment. The controller manages 5 actions intelligently : cooling, heating, humidifying, dehumidifying or cooling and dehumidifying. It allows adjustment of 5 set points per climate parameter: set points for day, night, temperature and humidity’s differential, alarm and event logging.

Features

• Sophisticated controller for experienced growers
• Output 1 (bottom) for CO₂ enrichment or CO₂ ventilation control
• Output 2 (top) for temperature or humidity control
• Displays CO₂, temperature and relative humidity values
• Smart automatic self adjustment of operation differential to keep conditions closest to set points
• Can shut off another equipment while CO₂ enrichment is ON, or the other way around
• 24-hour data log of values
• 120V, 15 A, 2 HP total load capacity

3 Year Warranty!
