Description

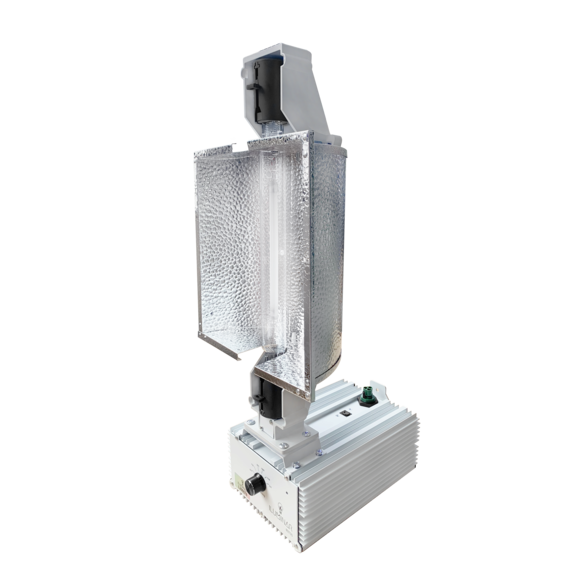

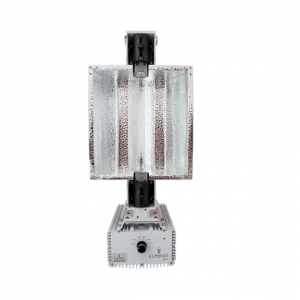

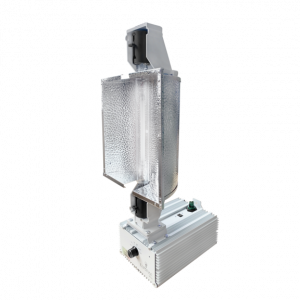

The ILUMINAR 1000W DE commercial grow light is a feature rich, double-ended High-Pressure Sodium (HPS), all-in-one unit engineered with a low shadow footprint for commercial reliability.
This is the “tried and true” industry standard for performance. These fixtures have now been a staple for more than 10 years.
The ILUMINAR 1000W DE is part of the Commercial Series with the best agricultural technology on the market designed by veterans in the indoor lighting industry.
It powers the HPS or MH lamp of your choice in the Hortilux or ILUMINAR brand. Every option delivers the highest available PAR light output and an increased spectrum that delivers results that you require in today’s quality market.
With an all-new, proprietary single-handed ILUMINAR “roll-lock” socket for easy lamp changing, the 1000W DE delivers the ultimate light output, superior uniformity, and deeper canopy penetration.
PPF: 2100 μmol/s
Lamp Included: ILUMINAR 1000W DE
Included Power Cable: 240V
Compatible With:
- DE HPS Lamps
- DE MH Lamps
Top Product Features:
- Microprocessor Driven
- End of Lamp Life (EOL)
- Open Circuit Protection
- Ignition Failure Protection
- Thermal Sensing Protection
- Max humidity 95%
- Max Allowable Case Temp 75 °C / 167 °F
- Ambient Temp : 0 – 35°C / 32 – 95 °F
- ETL Listed & FCC Declaration of Conformity
- Warranty: 3 Year Warranty on all ILUMINAR Ballasts, 1 Year Warranty on Lamps, read more at https://www.iluminarlighting.com/warranty
Features & Specifications:
- Controller: ILUMINAR Hash Controller, ILUMINAR Touch Controller or 0-10V Protocol
- Min Power Factor: >.99
- Crest Factor: >1.7
- Input Connection: IP68 Wieland Plug
- Input Frequency: 48 – 63 Hz
- Dimming Gear: 600 / 750 / 825 / 1000 / 1150 / EXT
- BTU Output: 4,400 btu
- Relative Humidity: 95%
- Operation Temp: 0 – 35°C / 32-95°F
- Recommended Lamp: 1000W DE 400V
- Lamp Included: ILUMINAR 1000W DE
- Lamp Base: K12 x 30s
- PPF: 2100 μmol/s
- THD: <10%
TECHNICAL INFO 1000W 120V/240V
- Input Volts (+/- 10%): 120V | 240V
- Input Current: 9.30A | 4.60A
- Input Power: 1085W | 1055W
- Rated Main Voltage: 120V | 240V
- Voltage Range: 108-264V
TECHNICAL INFO 1000W 277V/347V
- Input Volts (+/- 10%): 277V | 347V
- Input Current: 3.85A | 3.07A
- Input Power: 1045W | 1040W
- Rated Main Voltage: 277V | 347V
- Voltage Range: 249-305V | 312-382V
INTENDED USE: The all-new redesigned ILUMINAR DE 1000W HPS lamps deliver not only unique options and performance like 2100+ micromoles but also partner with brand options, like Hortilux and Unistrut. ILUMINAR Lamps gives the growers many emitter options to use; it is becoming the only fixture needed in most facilities.
ELECTRICAL: Ballast rating, and any other pertinent electrical information.
INSTALLATION: Suitable for suspension by chain, cable, surface-mounting bracket, hook monopoint, etc…
LISTING/CERTIFICATIONS: Include text for listing
WARRANTY: Please contact your point of purchase store for returns. When properly used, this unit will provide you with years of service. The ballast is covered under a 3 year warranty and the lamp has a 1 year warranty. This warranty will be voided if the unit is misused, abused, opened or altered. Warranty repair or replacement will be at the sole discretion of the manufacturer. Defective units need to be returned to the place of purchase with proof of purchase/receipt.
For more warranty information, visit iluminarlighting.com/warranty.
NOTE: Actual performance may differ as a result of end-user environment and application.
